iSEVEN Flex Server

Disassembled variant

iSEVEN Flex SERVER series enhances general-use cabinets with elements from dedicated RSF server cabinets for greater utility.

Datasheet Learn more

Where to buy?

Use this product in the solution Server rooms More about the solution

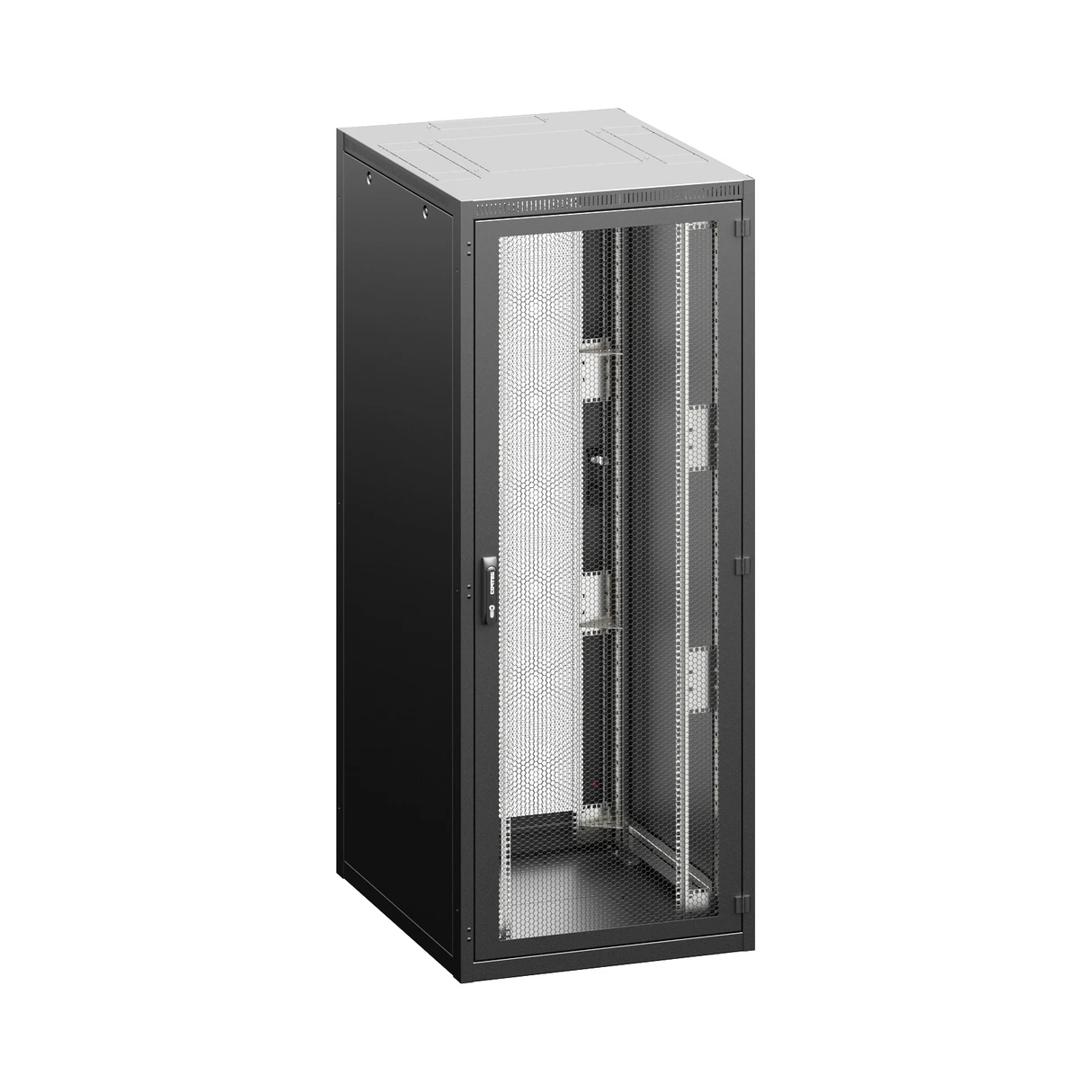

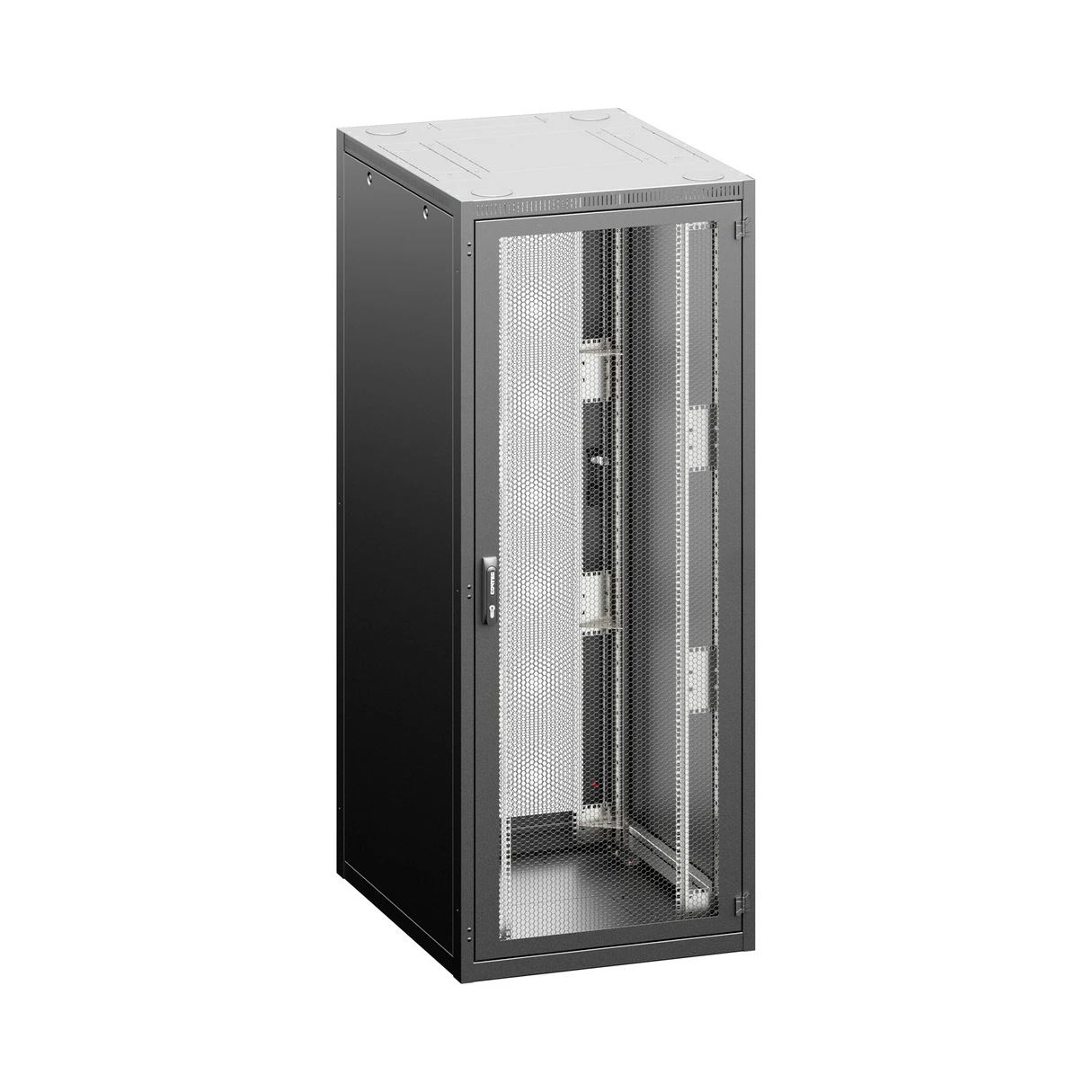

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-main2023-web

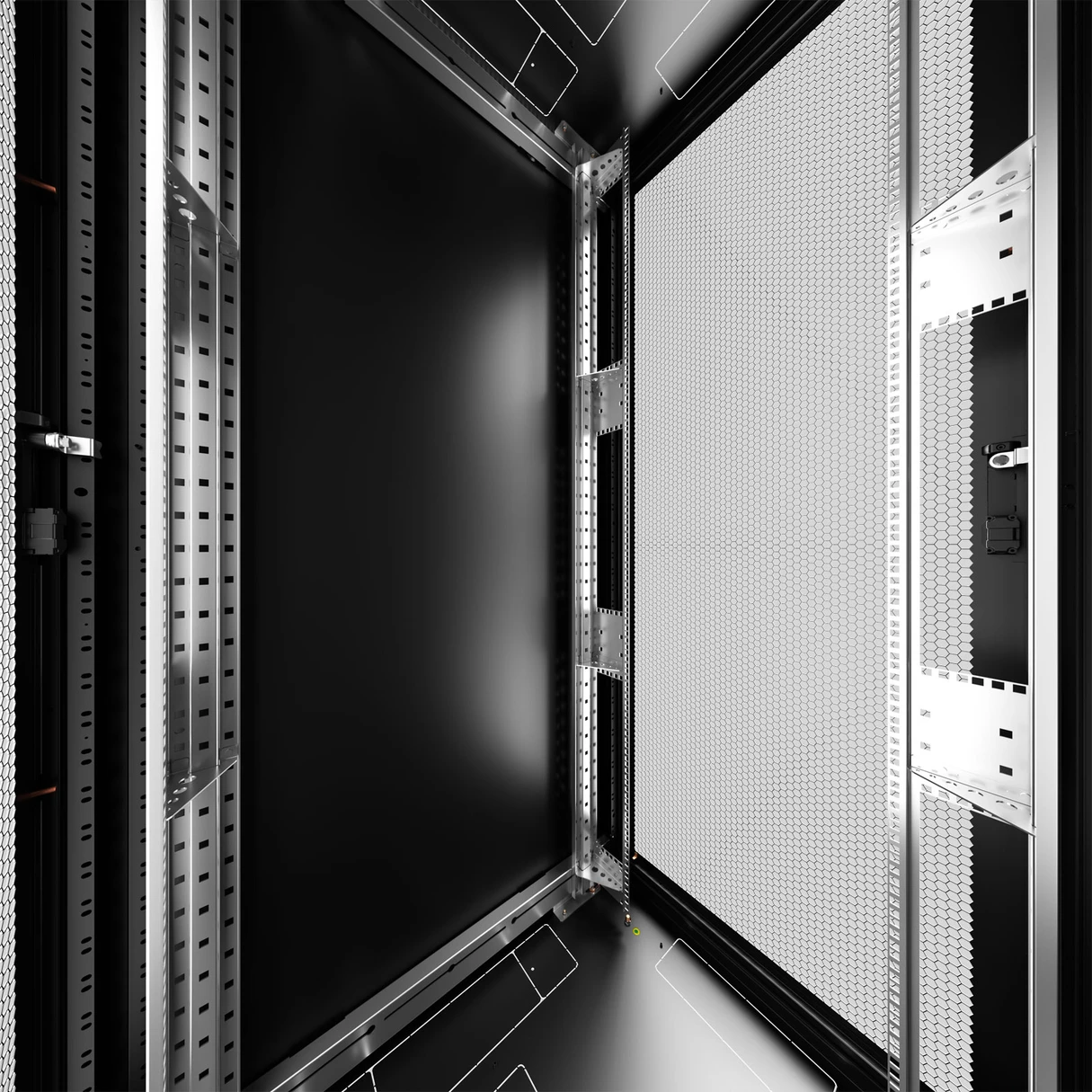

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-inside-extrusions-web

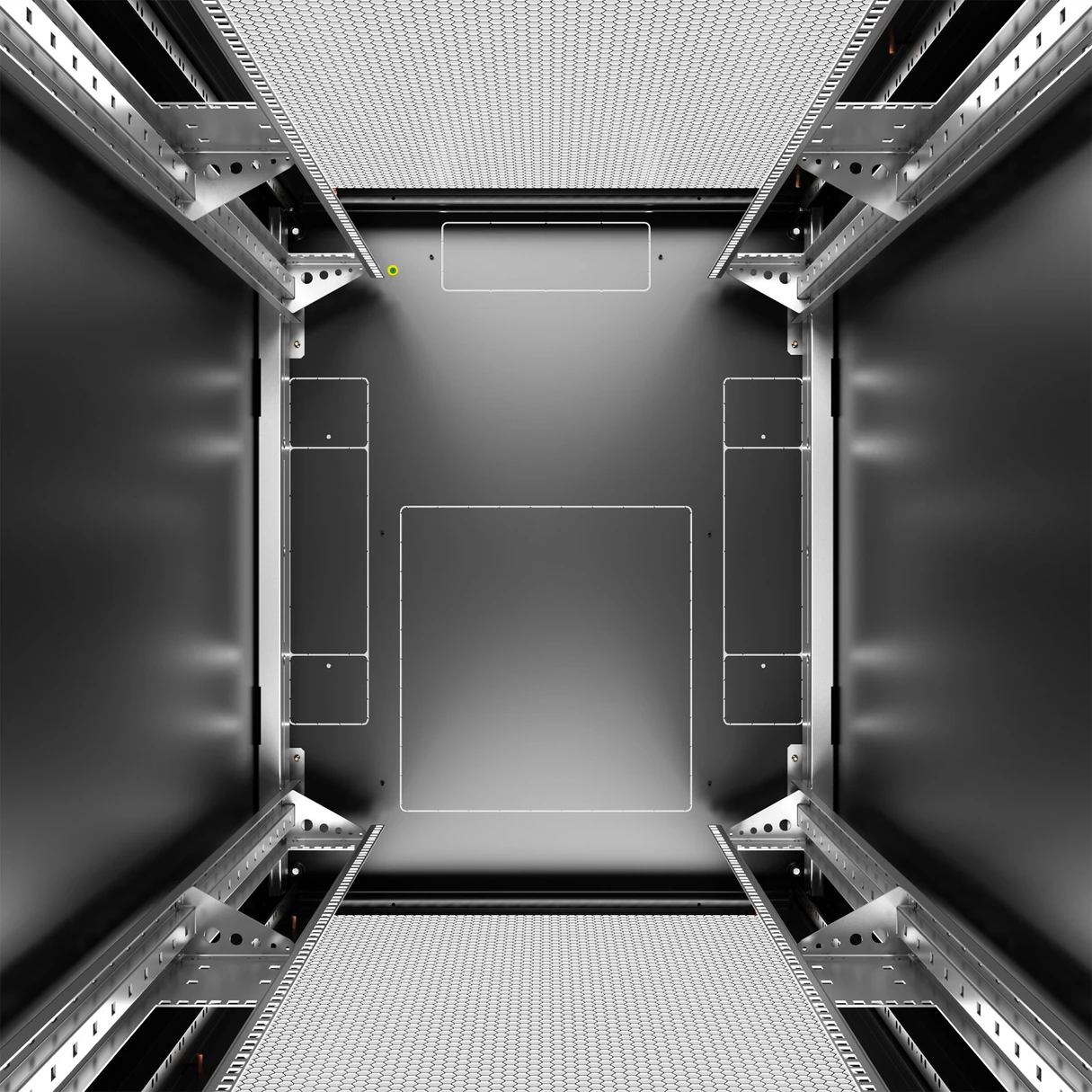

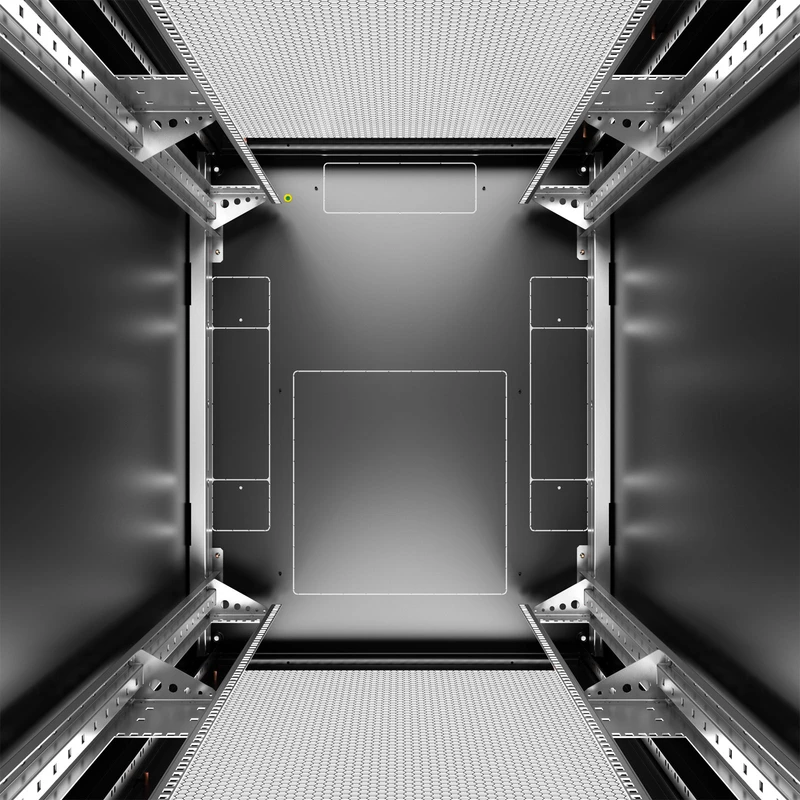

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-inside-bottom-web

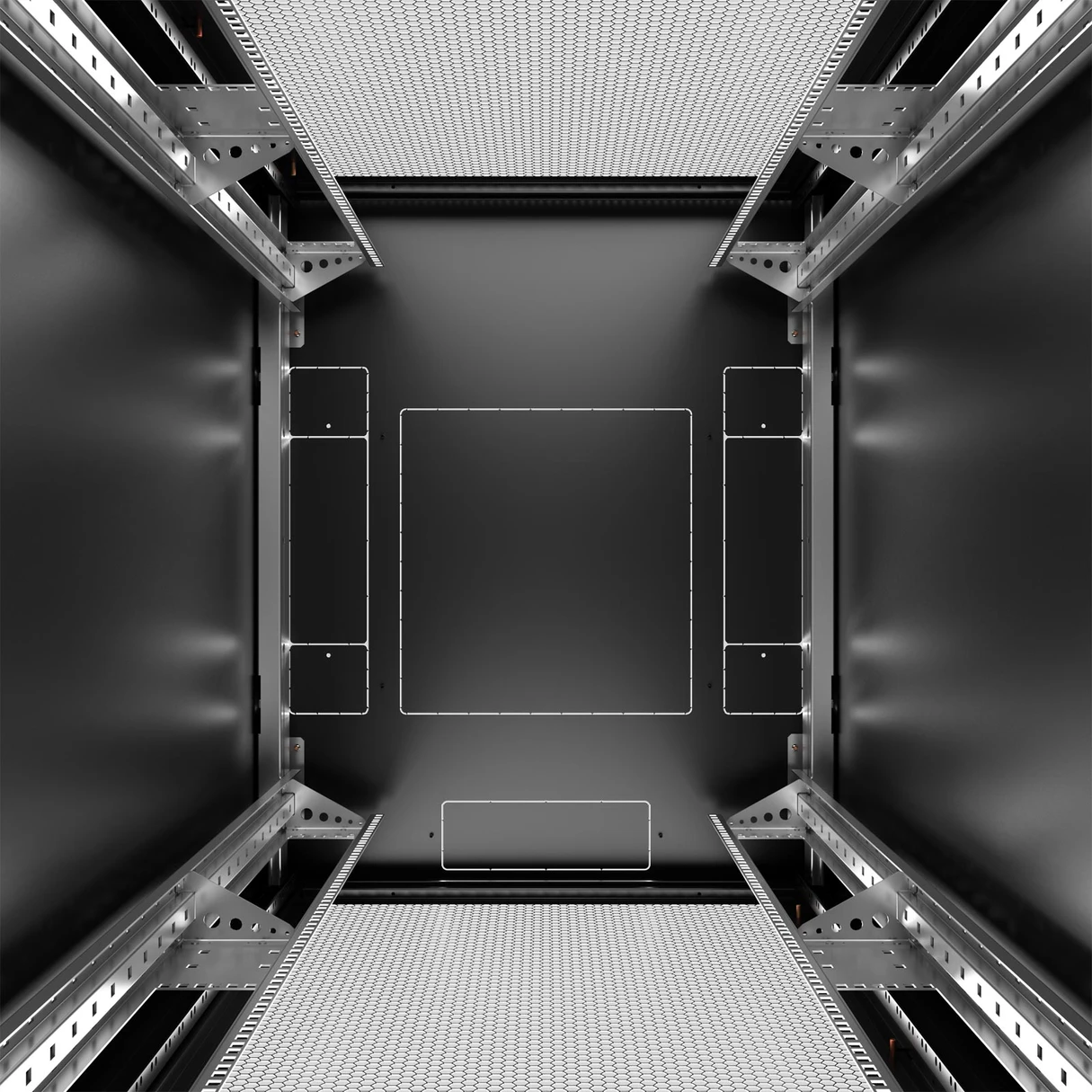

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-inside-top-web

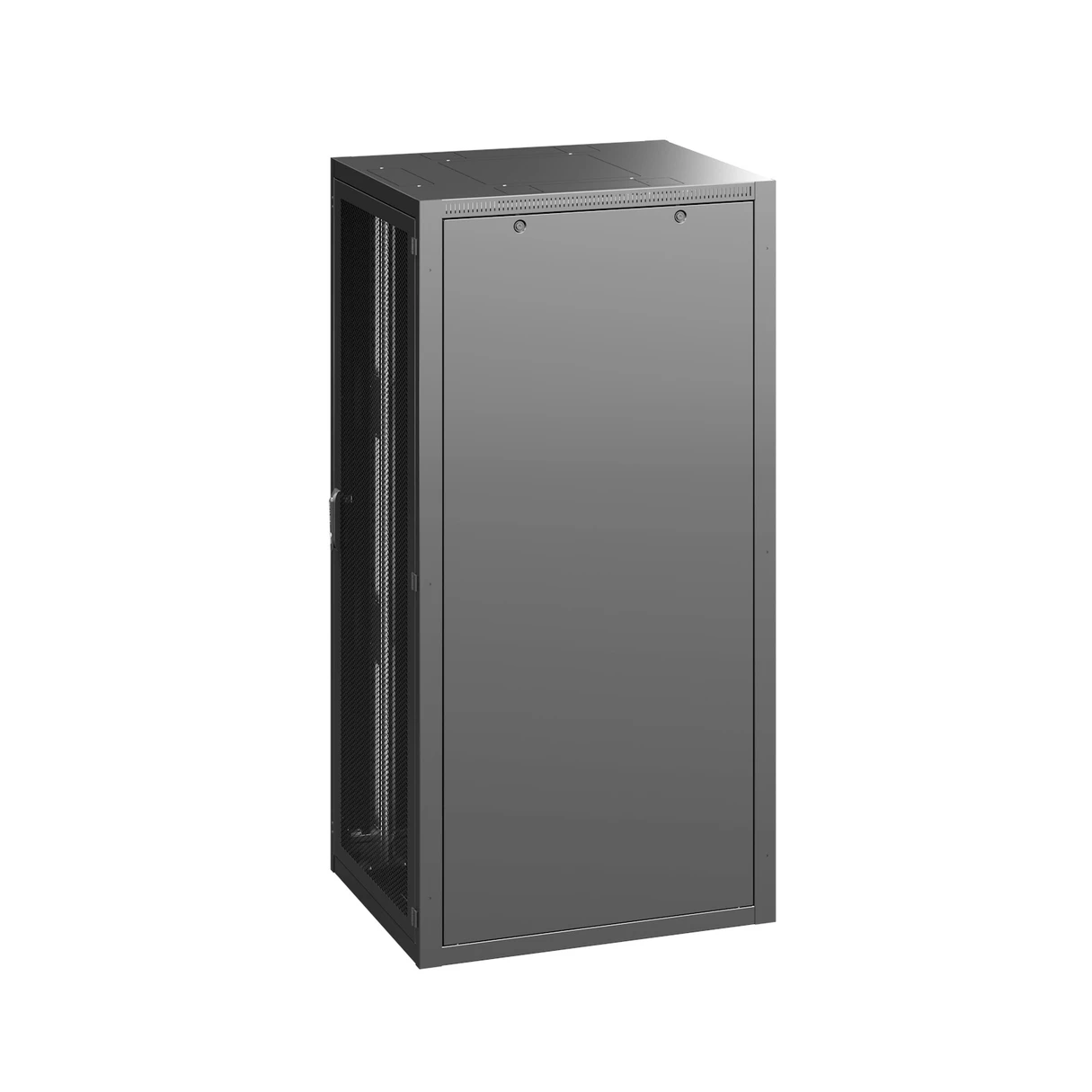

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-back-left-web

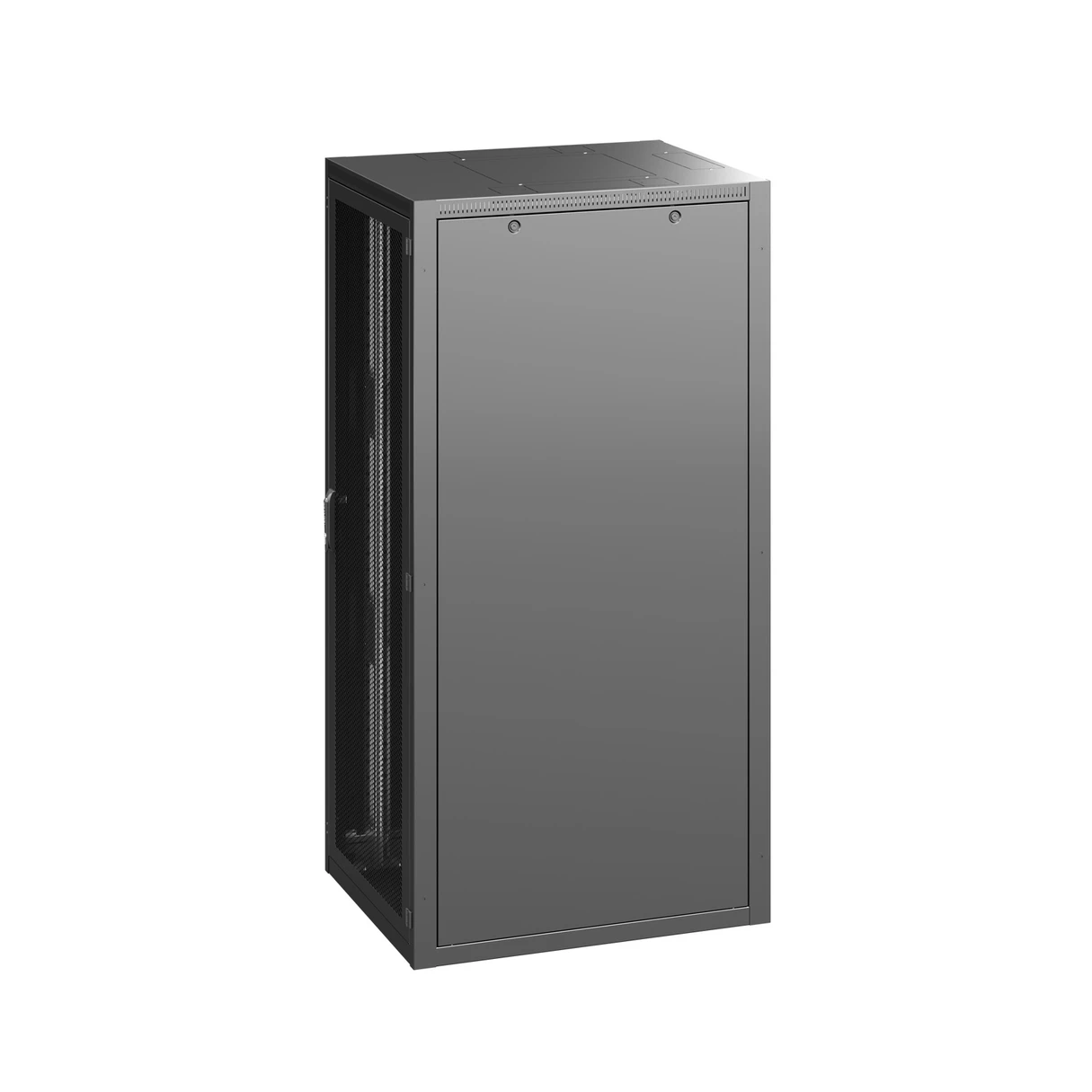

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-front-right-web

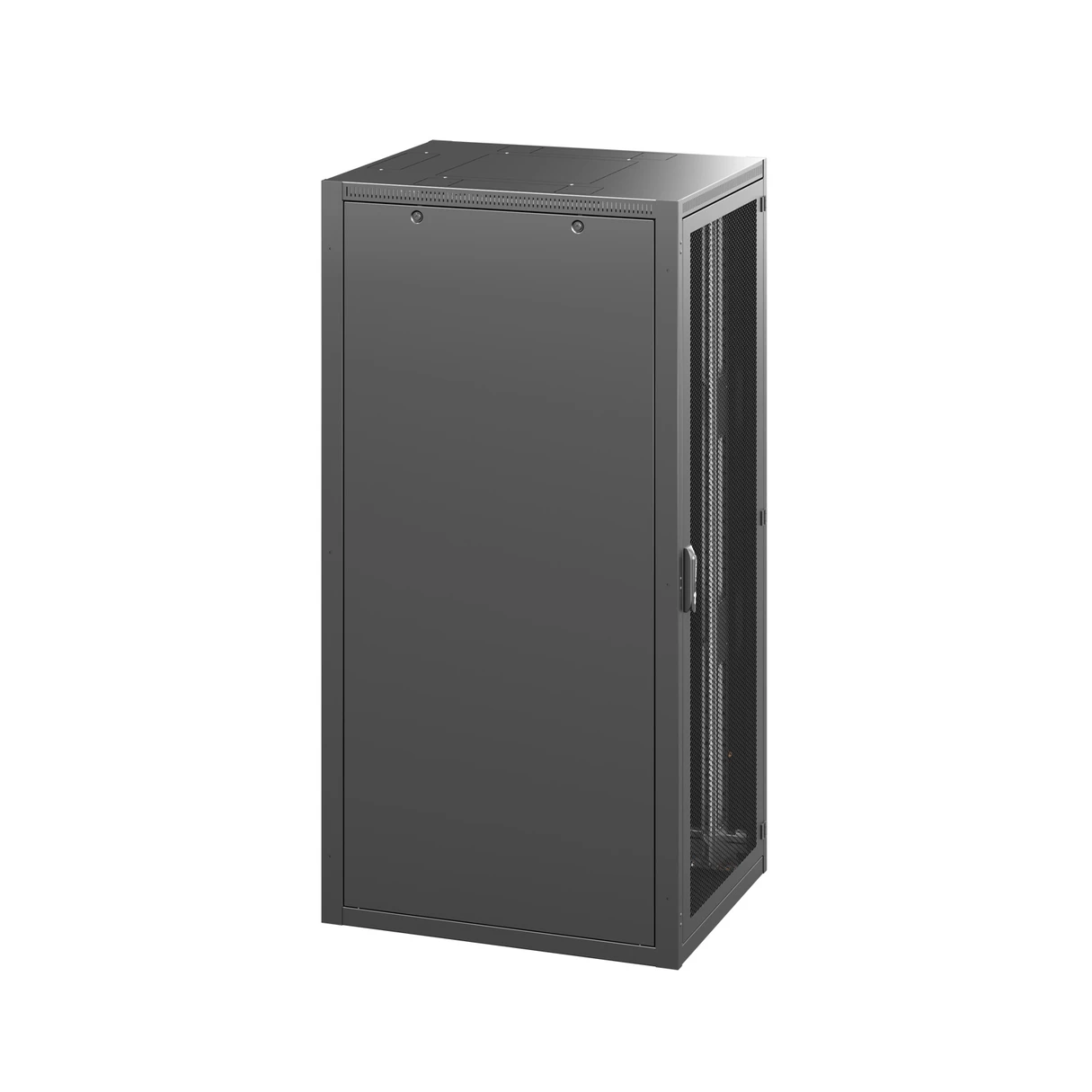

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-left-front-web

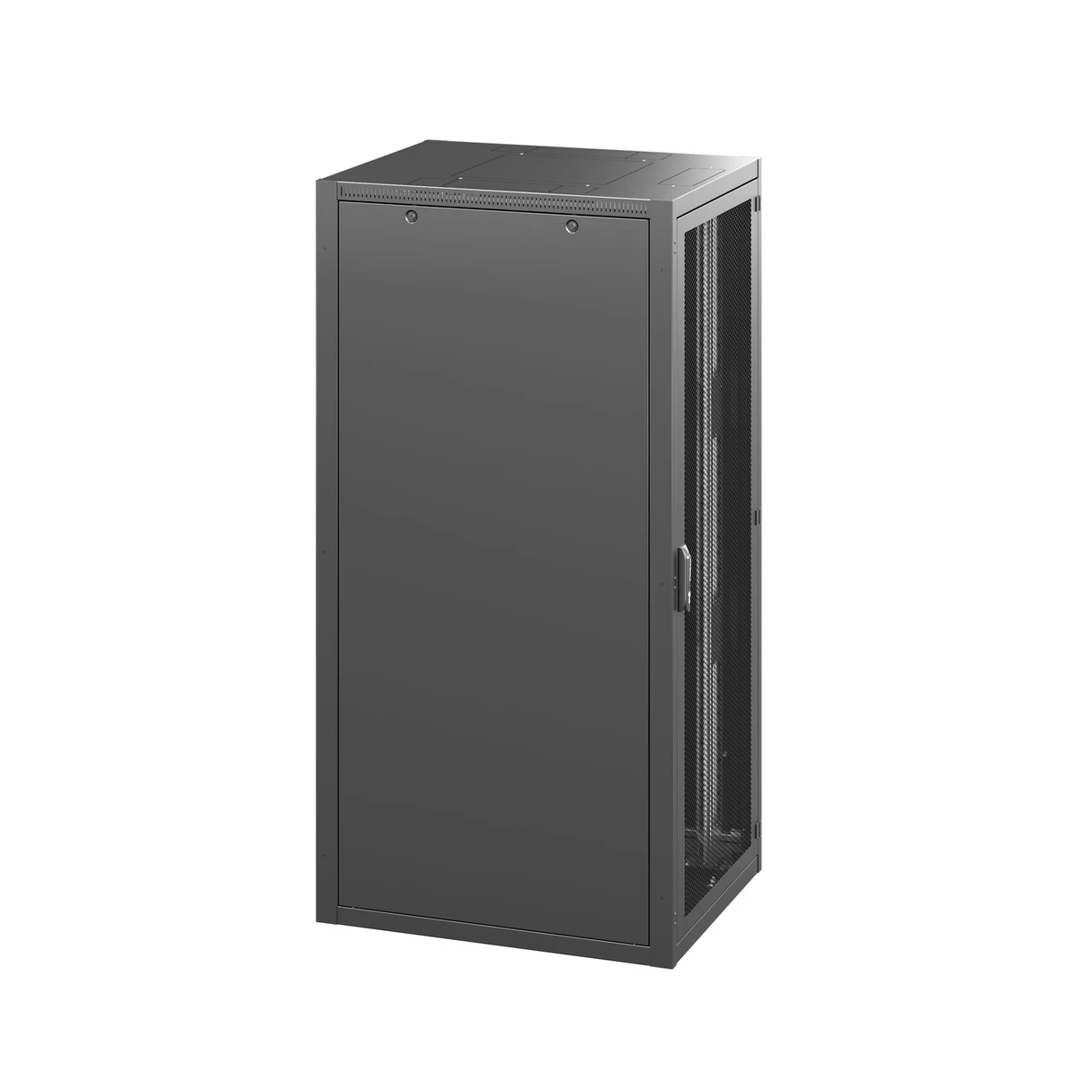

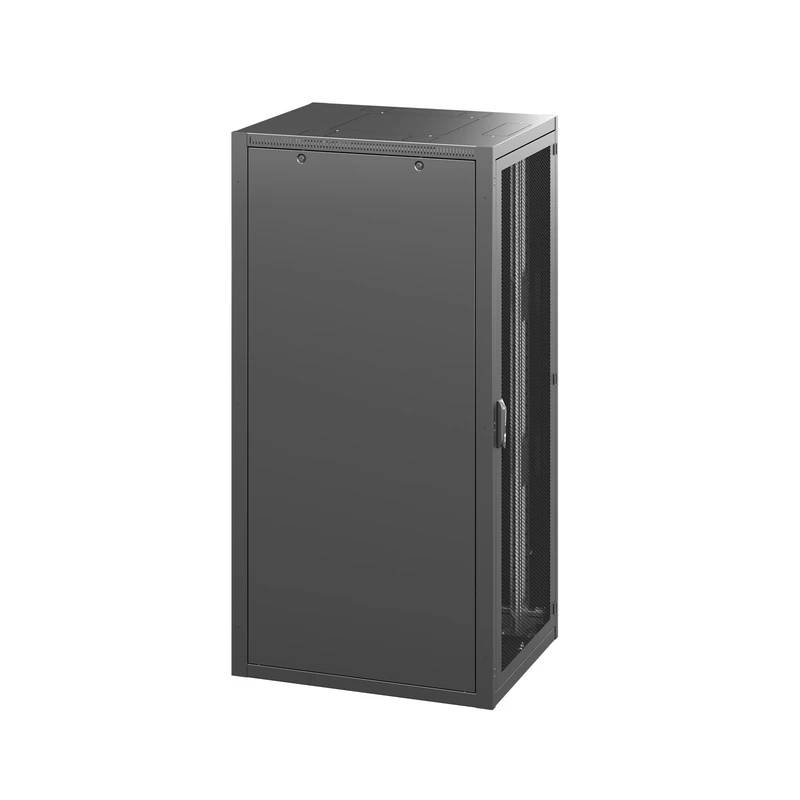

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-right-back-two-web

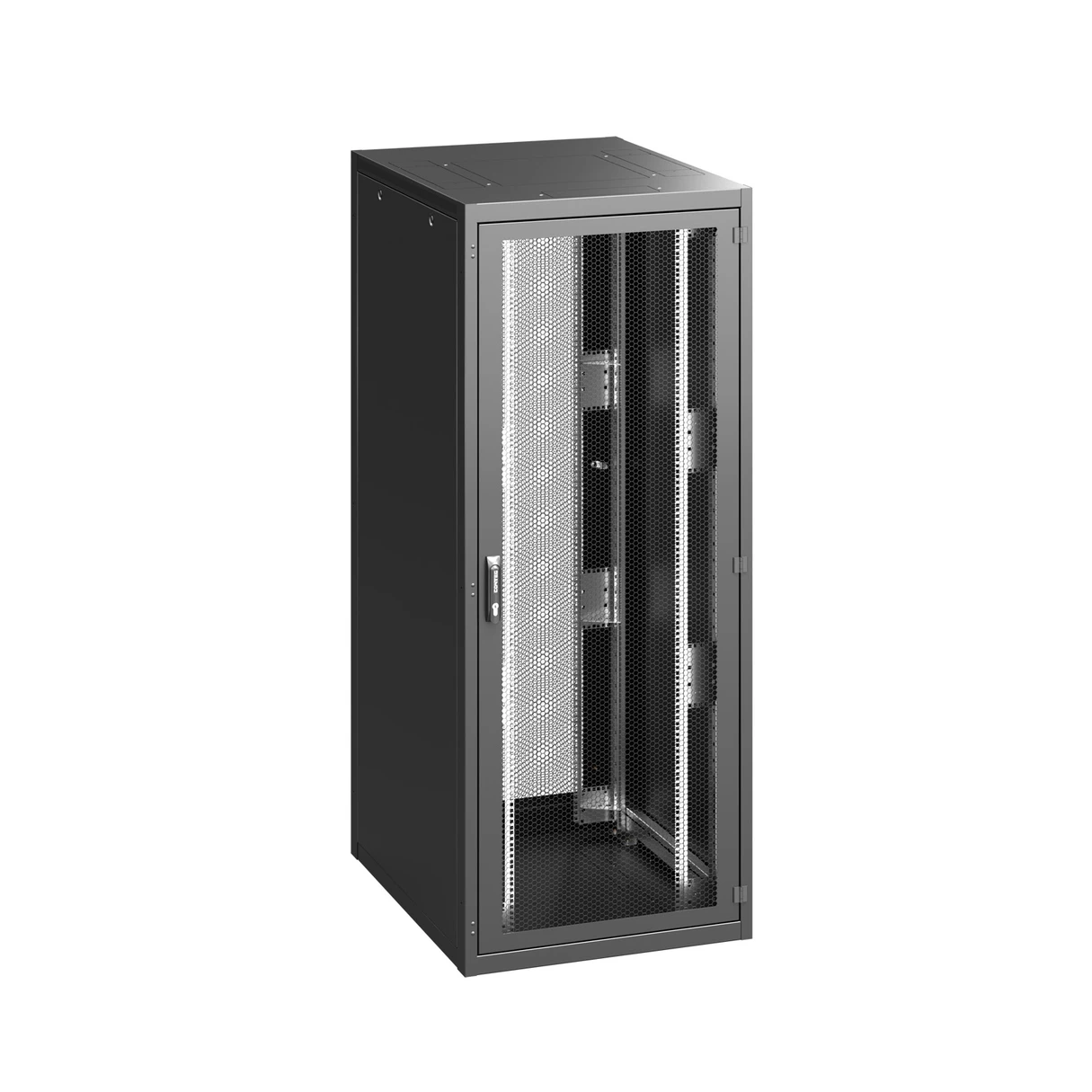

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-right-back-web

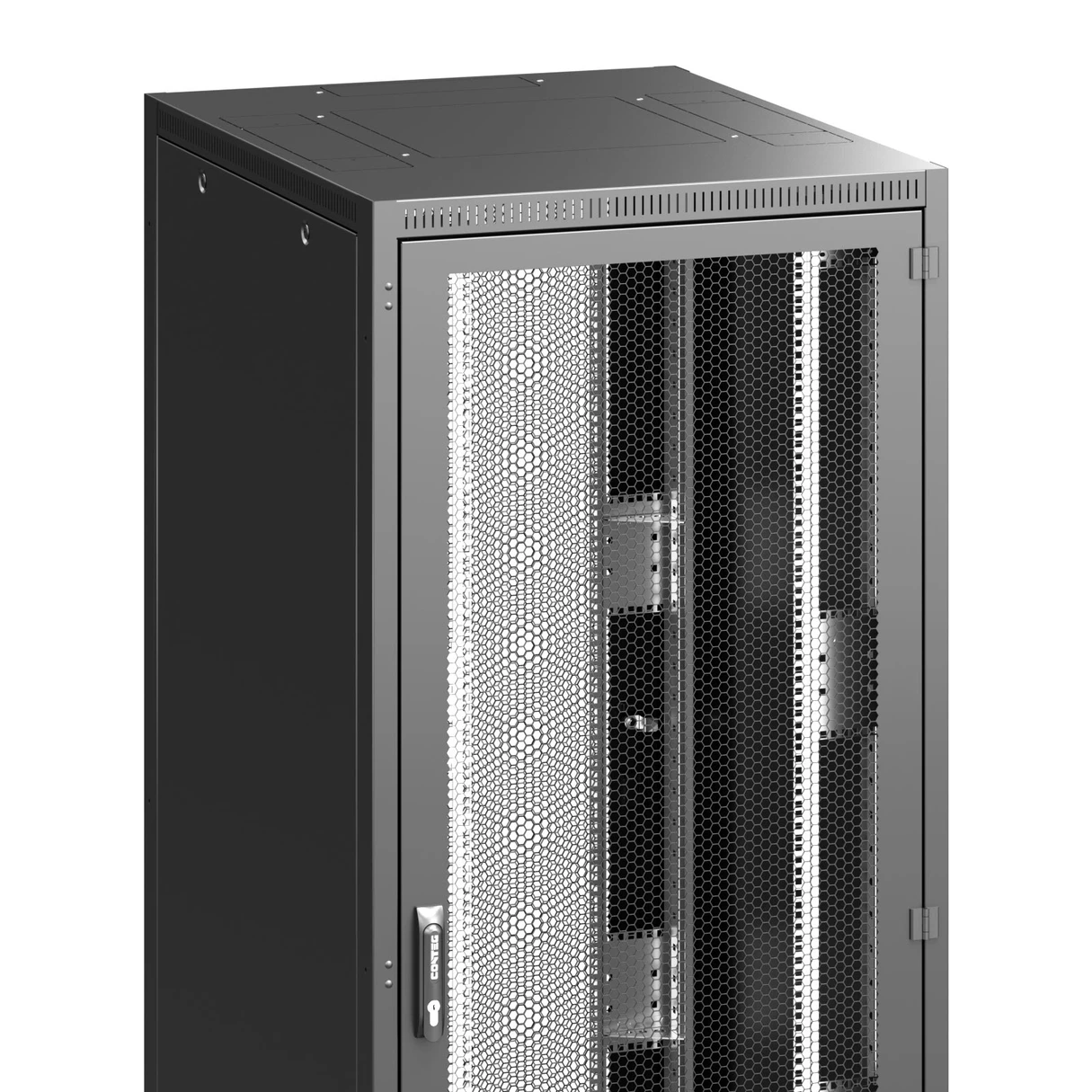

iSEVEN-Flex-Server_RM7-42-80_10A-S2-H-handle-hinges-web

Product introduction

Based on thorough research, we have prepared for you the most requested cabinet configurations for server rooms and other projects - our iSEVEN Flex SERVER rack cabinets. These selected cabinet configurations satisfy the most challenging requirements and offer an unbeatable price/performance ratio. Ideal for everyday use where a load capacity of up to 1,000 kg is required. For efficient operation of servers, the cabinets are equipped with super-perforated doors with an unrivaled 86% perforation rate.

Key benefits of the product

Server cabinet for IT hardware up to 1,000 kg
Unmatched door perforation rate of 86% reduces server fan power consumption
Unassembled version for transport to hardly accessible locations

Information For download

Information

Key features

Product line name	iSEVEN Flex Server
Bestseller	Unassembled version
Height (U)	42
Width (mm)	600, 800
Depth (mm)	1000
Load capacity (kg)	1000
Front door	Perforated door - 86% perforation rate Tilting lever handle, DIN profile, universal key 333, single point
Back door	Perforated door - 86% perforation rate Tilting lever handle, DIN profile, universal key 333, single point
Side panels	Detachable with locks
Feet / castors	Adjustable feet
Rails	Type A rails, undivided (600 or 800 mm wide) rails without horizontal brackets (in the 800 mm format, they provide an additional 24U of installation space); adjustable from the inside, blanking panels not included
Kabelové vstupy	Universal size 300 x 100 mm - back side of the top and bottom cover Universal openings can be covered with blanking panels (to be ordered separately) Extended dimensions 500 x 115mm - for 800mm width only - both sides of the top and bottom cover. It consists of 3 parts - 300 x 115 mm and 2x - 100 x 115 mm, each part can be opened separately Extended openings can be covered with blanking panels or a standard cable brush - middle hole. The opening can be protected with a rubber rim (DP-KP-LEM-6) or a brush (DP-KP-KAR-6)
