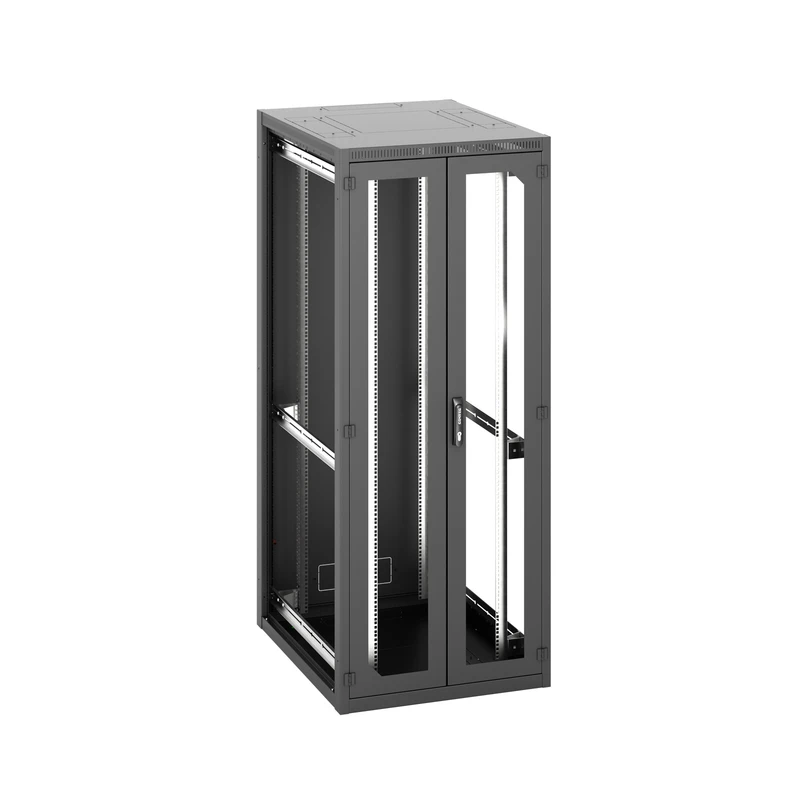

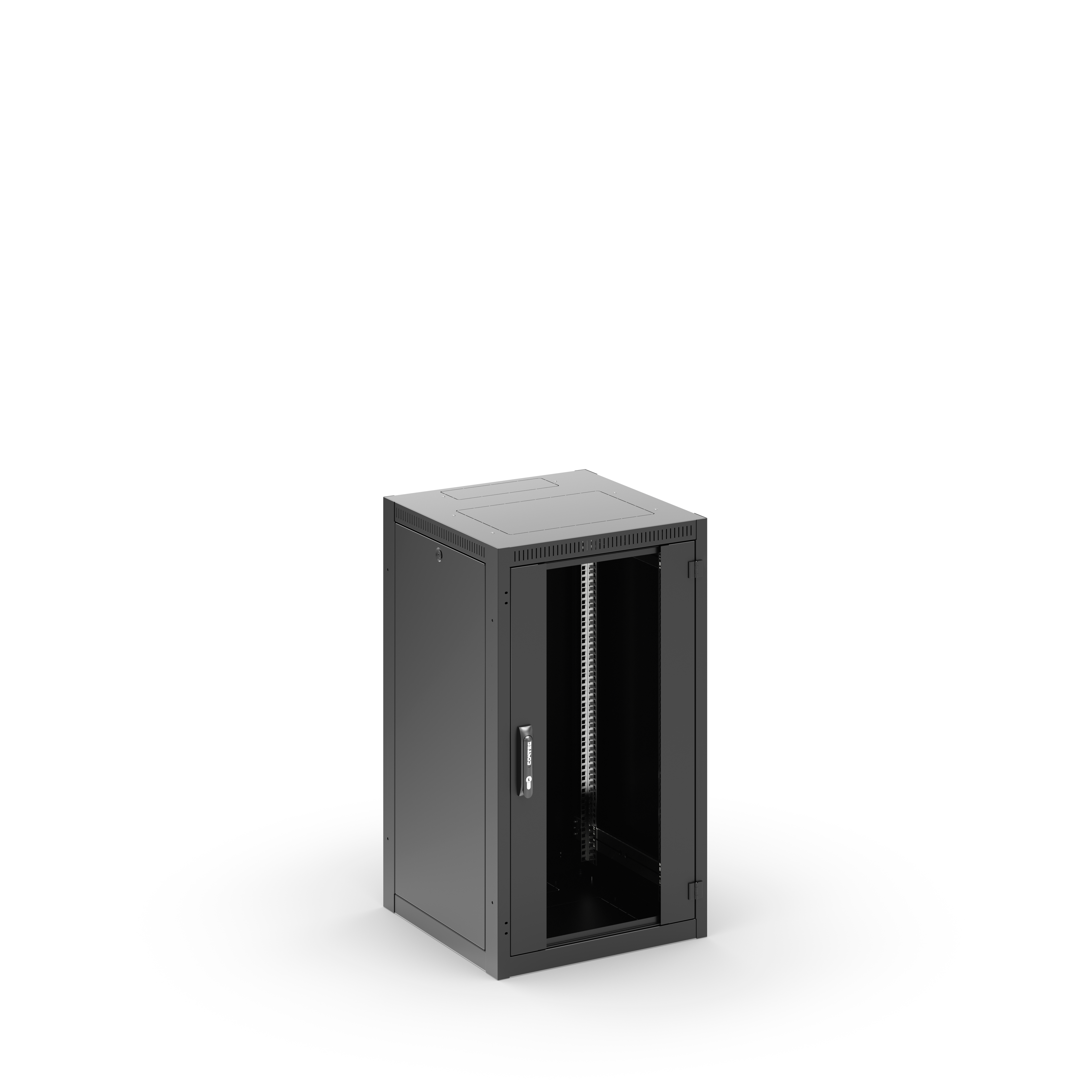

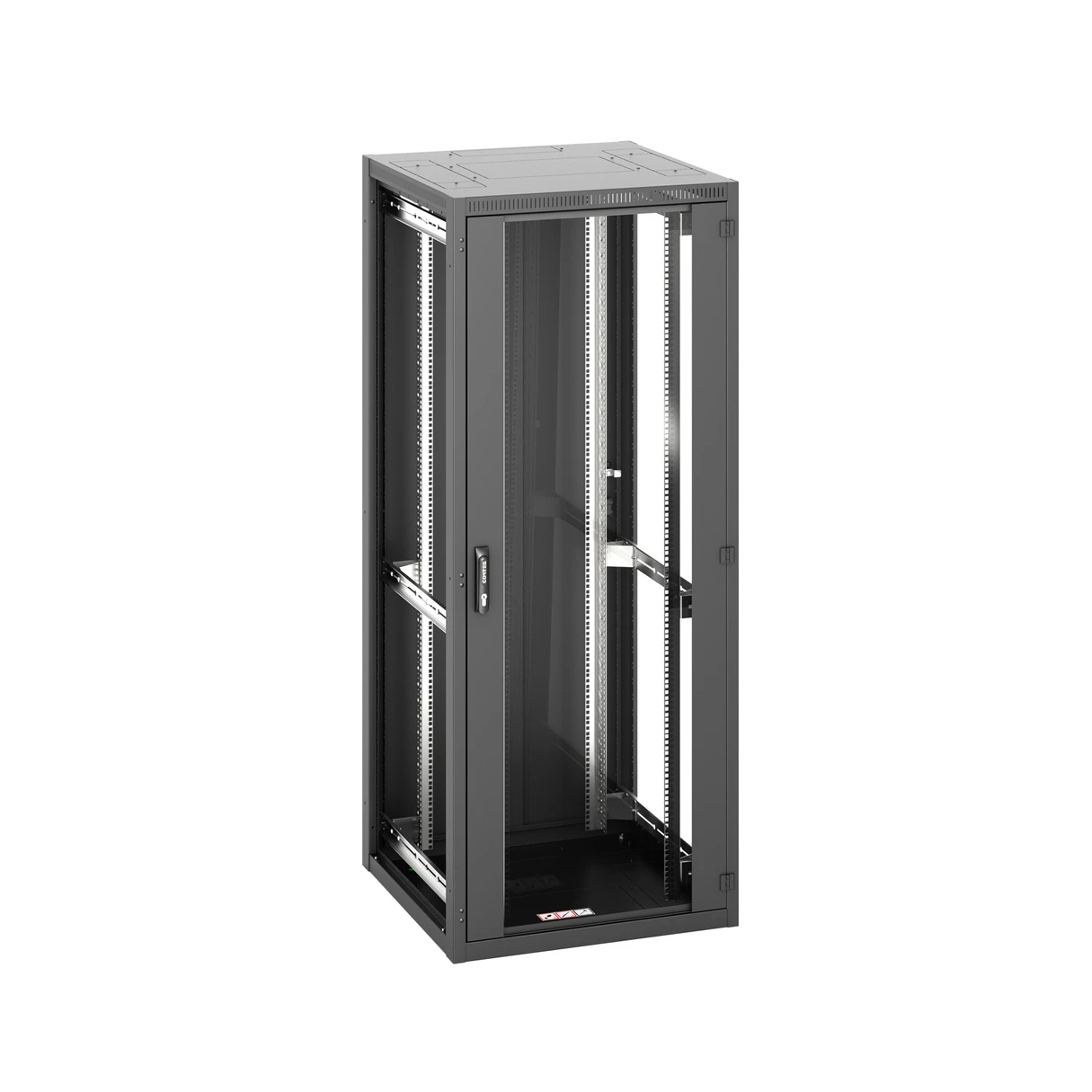

iSEVEN Ri7 Data Cabinets are designed to provide an unbeatable value and quality for the price. These are universal cabinets with a load capacity of up to 800 kg.
The iSEVEN Ri7 cabinet is designed to provide an unbeatable ratio between price, utility, and quality. Ideal for installers and end customers who want to spend less time choosing between different options.
After meticulous research, we have prepared a portfolio of the most requested formats with a universal design and a limited set of options. iSEVEN is intended for use in server rooms, telecommunication exchanges, as well as as a stand-alone unit. The 19"" iSEVEN Ri7 data cabinet satisfies all requirements for safe installation of active elements, cabling, air ventilation and power supplies. The set of options is reduced compared to the configurable PREMIUM cabinets.
| Product line name |
ISEVEN RI7 |
|---|---|
| Bestseller |
Universal cabinet |
| IP rating |
IP30 |
| Height (U) |
27, 42, 15, 21, 45, 48
|
| Color design |
RAL7035 or RAL9005 |
| Standard configuration |

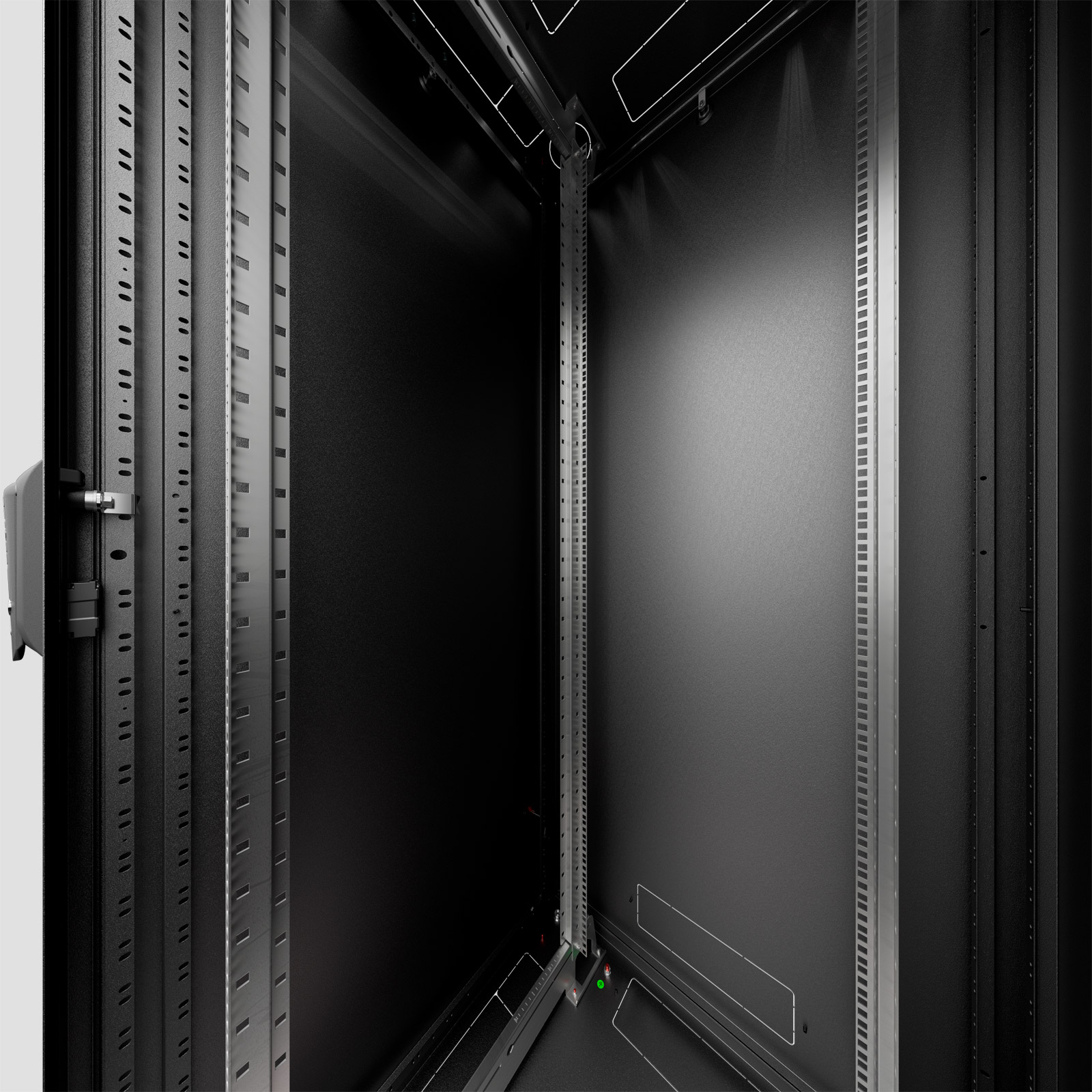

2 pairs of vertical 19"" sliding L rails, marking of individual installation positions including position number, |
| Width (mm) |
600, 800
|
| Technical information |
Other configurations are also available, for more information see the attached Data Sheet |
| Depth (mm) |
800, 1000, 600, 1200 upon request
|
| Load capacity (kg) |
800 |
| Přední a zadní dveře |
4 types of doors (type G, S, P and W) available for front or rear installation and 1 type of rear panel. Door opening angle 180°, easy-to-switch opening direction, hinged handle with exchangeable DIN profile |

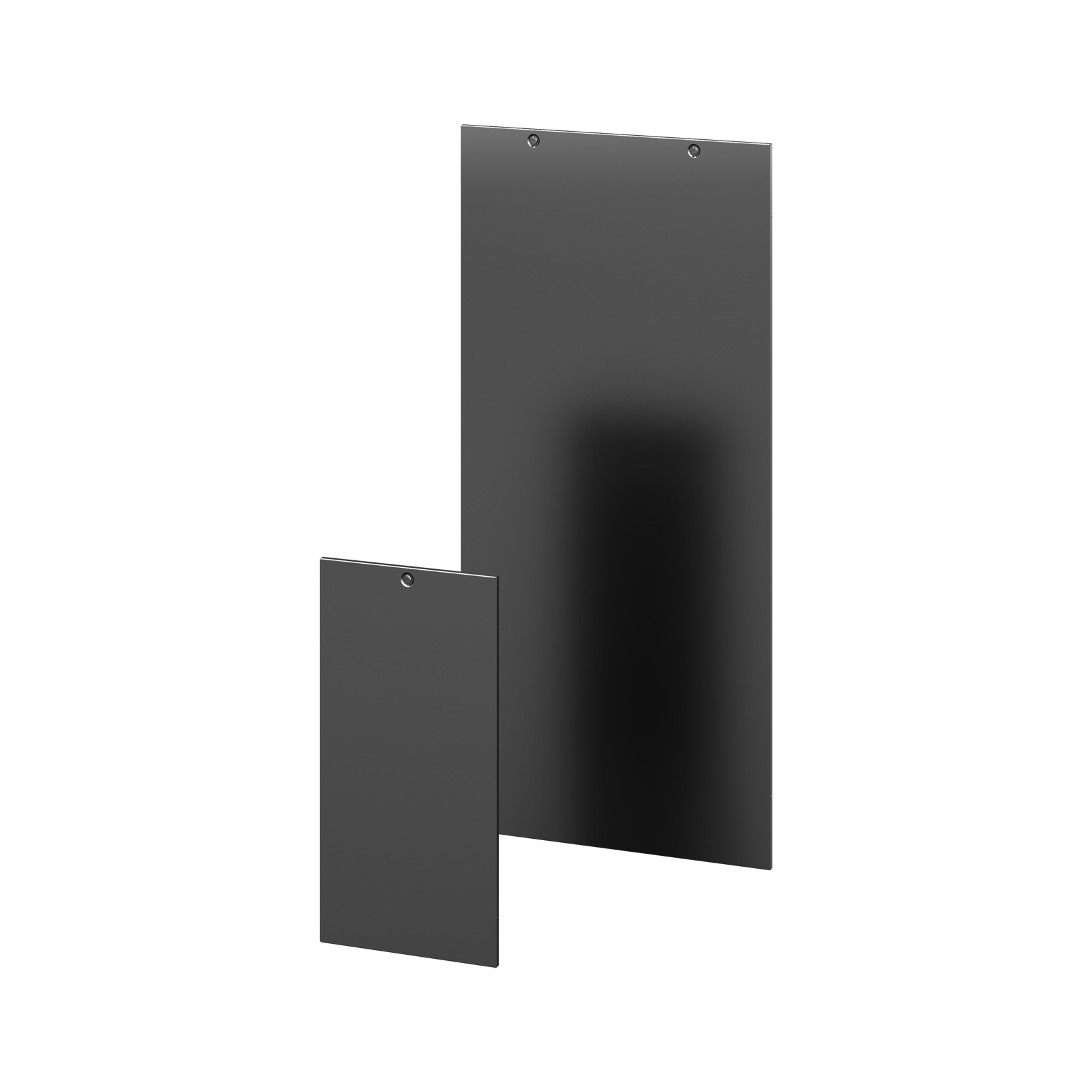

| Side panels |
Easily removable, equipped with a lock |
| Top covers |
Openings for the ventilation unit and cable inlets, breakout design, the number depends on the base format |
| Horní a spodní kryty |
Openings for the ventilation unit and cable inlets, breakout design, the number depends on the base format |
| Feet / castors |
Adjustable feet, castors and braked wheels |
| Rails |
2 pairs of sliding 19" L rails |

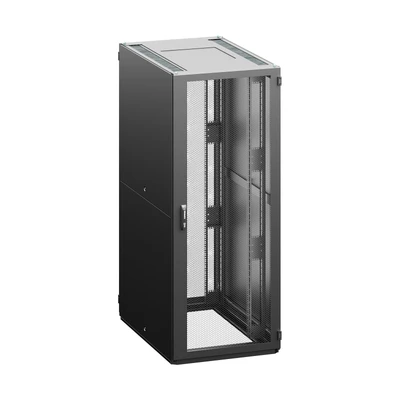

Suitable for the most demanding conditions and use cases, the cabinet is based on a high-strength frame laser-welded from a patented profile. Thanks to this, the RF1 achieves maximum frame rigidity and a load capacity of up to 2,000 kg.
