Handheld enclosures for electronics

Serie 33

Suitable for various control solutions requiring large volume.

Datasheet Learn more

Where to buy?

Product introduction

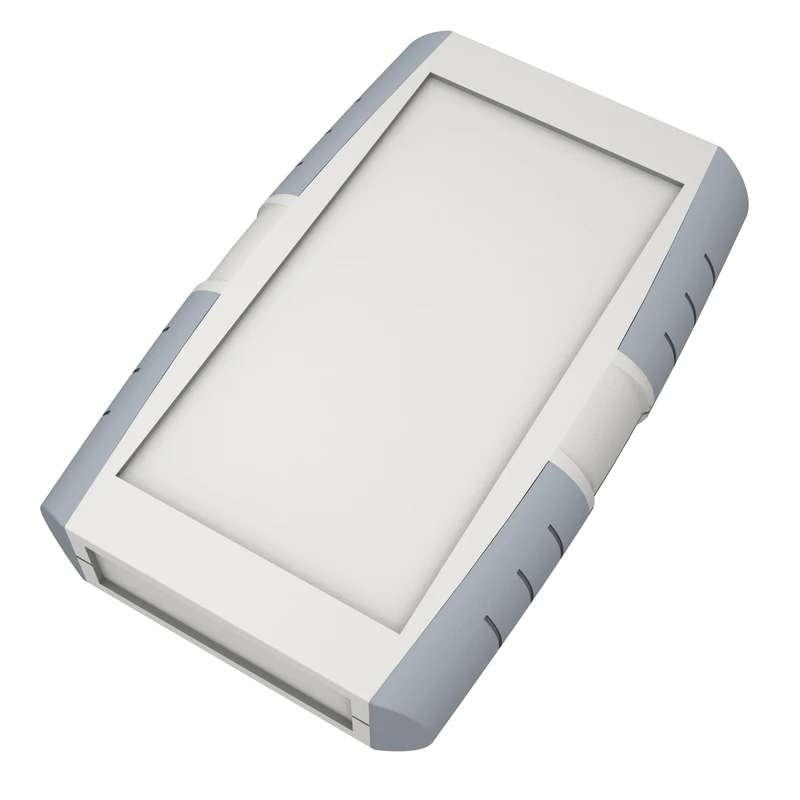

The Series 33 range of hand-held electronics boxes in six sizes is suitable for various control solutions requiring large volume.

Information For download

Information

Key features

Product line name	Serie 33
Technical information	DESCRIPTION A new design of the control box for use cases where a rigid construction is required; the edges are coated for better protection and grip Assembly by exerting pressure to the edges or in combination with screws New ergonomics, optimized for convenient handheld operation Various keyboard mounting options. Recessed surfaces in the lid, base and front and back panels Easy snap-together assembly of base, lid and front and back panels. Battery cover attached with screws Brackets on the base and lid for fixing printed circuit boards with self-tapping screws Optional EPDM seals for IP65 protection Temperature resistance up to 85 °C Basic unit includes: lid, base and edge protectors. A battery compartment cover and screws included with large sizes Accessories: EPDM joint seal MATERIALS AND SURFACE TREATMENT Lid, base and battery cover - 3mm thick high-quality injection-molded ABS Edge surface treatment – polypropylene and non-slip TPE material Standard colors: lild in light gray similar to RAL 7035 (ABS) and corners in light gray similar to RAL 7001 (TPE) Standard color options: lid - light gray RAL 7035 or black RAL 9004; corners - blue RAL 5007, green RAL 6026, red RAL 3020, orange RAL 2003, black RAL 9004, yellow RAL 1021, gray RAL 7001 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Product line name

Serie 33

Technical information

DESCRIPTION

A new design of the control box for use cases where a rigid construction is required; the edges are coated for better protection and grip
Assembly by exerting pressure to the edges or in combination with screws
New ergonomics, optimized for convenient handheld operation
Various keyboard mounting options. Recessed surfaces in the lid, base and front and back panels
Easy snap-together assembly of base, lid and front and back panels. Battery cover attached with screws
Brackets on the base and lid for fixing printed circuit boards with self-tapping screws
Optional EPDM seals for IP65 protection
Temperature resistance up to 85 °C
Basic unit includes: lid, base and edge protectors. A battery compartment cover and screws included with large sizes
Accessories: EPDM joint seal

MATERIALS AND SURFACE TREATMENT

Lid, base and battery cover - 3mm thick high-quality injection-molded ABS
Edge surface treatment – polypropylene and non-slip TPE material
Standard colors: lild in light gray similar to RAL 7035 (ABS) and corners in light gray similar to RAL 7001 (TPE)
Standard color options: lid - light gray RAL 7035 or black RAL 9004; corners - blue RAL 5007, green RAL 6026, red RAL 3020, orange RAL 2003, black RAL 9004, yellow RAL 1021, gray RAL 7001

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
